XR-18 Digital audio mixer 18 CH

Description

XR18 is an 18-input, 12-bus digital mixer featuring 16 programmable Midas-designed preamps, an 18×18 channel USB audio interface, and integrated Wi-Fi. It is fully controllable via iPad, Android, or PC/Mac tablets, making it popular for both live sound and studio use.

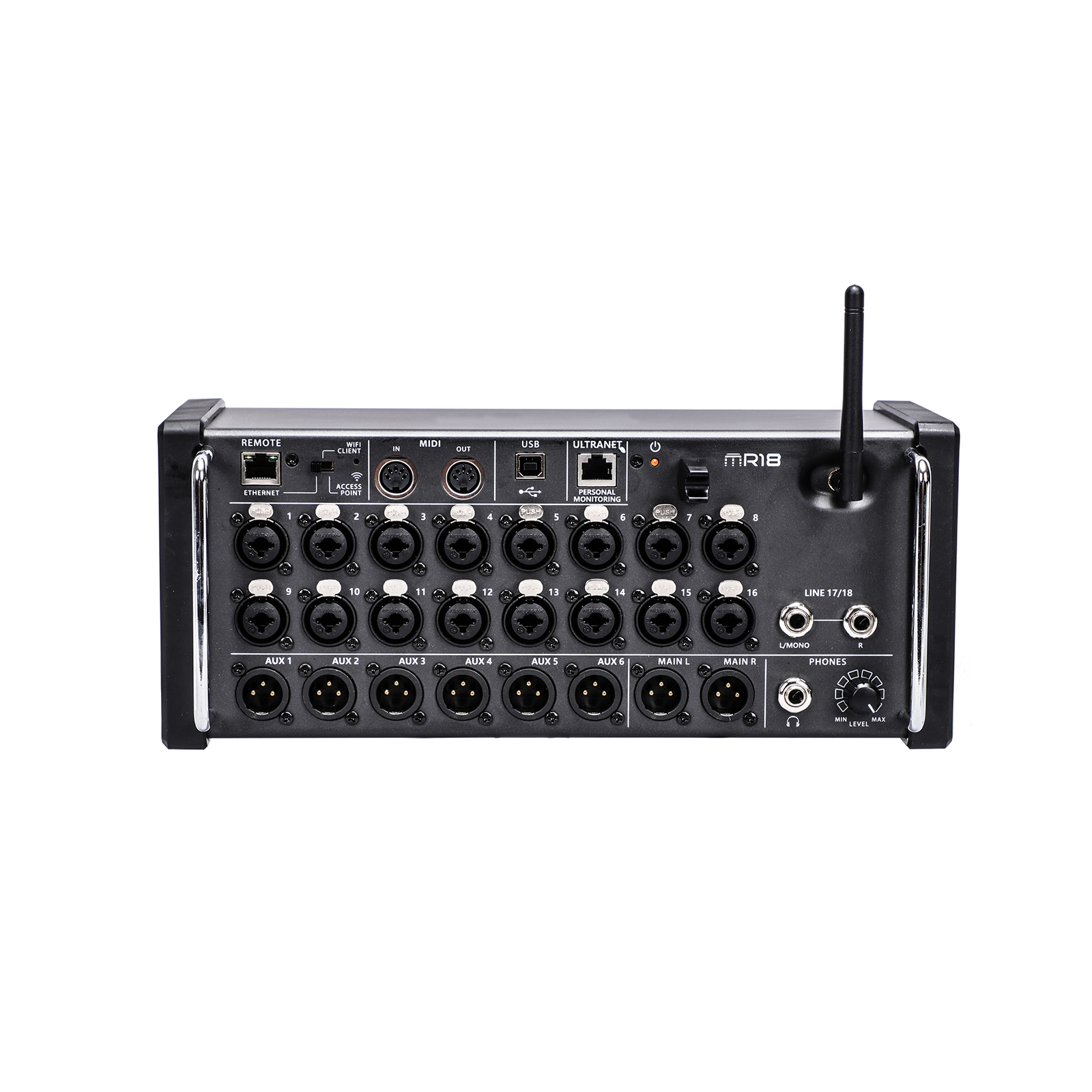

Inputs and Outputs
• Microphone/Line Inputs: 16 x XLR-1/4″ combo jacks, featuring Midas-designed preamps and remote-controllable 48V phantom power.
• Line Inputs: 2 x 1/4″ TRS balanced line/auxiliary inputs.
• Main Outputs: 2 x XLR (Main L/R).
• Aux/Monitor Outputs: 6 x XLR aux outputs for stage monitors.
• Digital/Control I/O: Ultranet port for personal monitoring (e.g., P16-M) and an Ethernet port for wired control or external router setups.
Digital Processing & Interface
• Computer Connectivity: USB 2.0 (Type-B) supporting an 18 times 18 bi-directional audio interface at 24-bit/44.1 or 48 kHz.
• DSP: 40-bit floating-point processing, featuring a 4-slot effects rack with simulations (Lexicon 480L, PCM70, EMT250, etc.) and a 100-band Real Time Analyzer (RTA) on all channel and bus EQs.
• Latency: Analog I/O latency is just 0.8 ms
Physical Specs
• Dimensions: 13.1″ W 5.9″ H 5.5″ D
• Weight:7.1 lbs 3.2kg
• Mounting: Rack-mountable (comes with rack ears and rubber protection bumpers).
