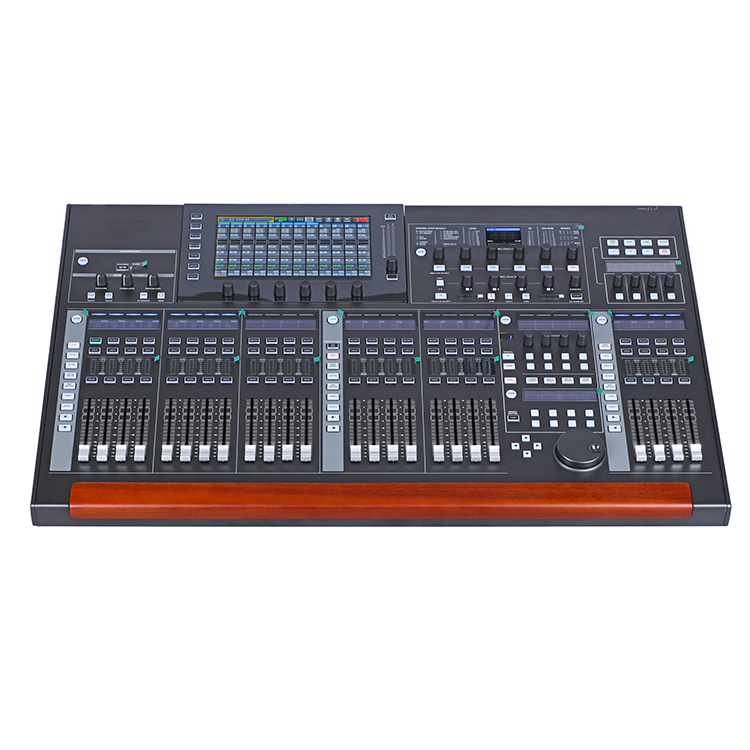

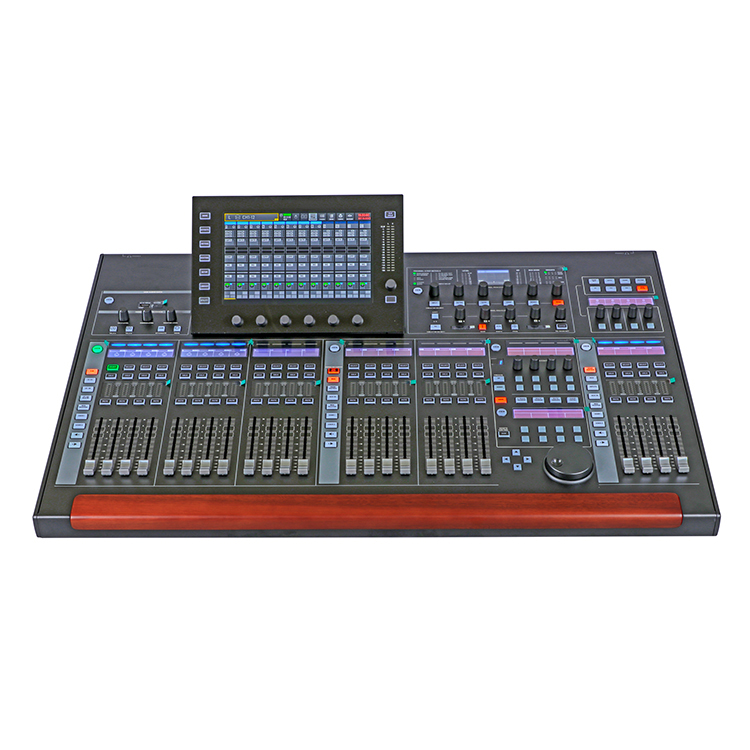

Wing BK Behringer digital audio mixer

Description

Wing BK Specifications
Feature Specification
Input Channels 48 stereo channels (plus 8 stereo Aux returns)
Bus/Matrix 28 stereo buses: 16 auxiliary, 8 matrices, 4 main outputs
Processing 40-bit floating-point
Faders 24 x 100mm motorized faders (in 3 fully programmable sections)
Screen 10.1″ Capacitive Multi-touch display
Internal Effects 16 FX processors (8 Premium/vintage emulations + 8 Standard)

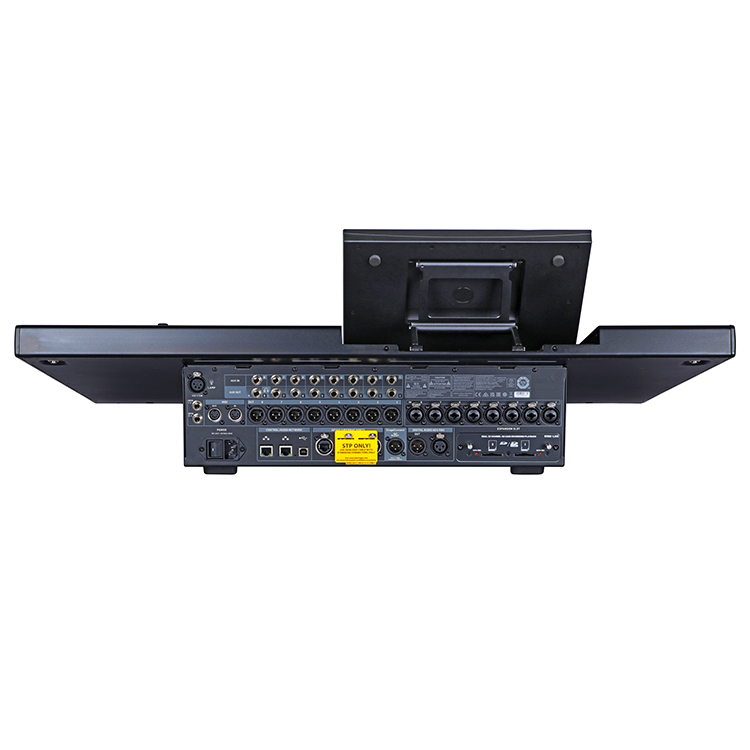

I/O & Connectivity
• Analog Inputs: 8 x Midas PRO Series XLR, 8 x 1/4″ TRS balanced line inputs, 8 x 1/4″ Aux
• Analog Outputs: 8 x XLR line, 2 x 1/4″ monitor, 6 x 1/4″ aux, 2 x 1/4″ stereo headphone jacks
• Digital I/O: 3 x AES50 ports (up to 144 streams), AES/EBU stereo I/O
• Expansion: WING-LIVE card installed (64×64 SD/SDHC recording). Supports optional Dante, MADI, or Waves Sound Grid cards.
• Stage Connect: 32-channel Klark Teknik port (transmits audio + 18W power via single XLR)
• Computer Connection: 48×48 channel USB 2.0 audio interface
Physical & Power
• Dimensions: 7.9″ x 34.3″ x 22.6″ (201mm x 870mm x 575mm)
• Weight: 24 kg (52.9 lbs)
• Power Supply: Switch-mode, Auto-ranging 100-240 VAC (50/60 Hz)
