4×2 HDMI Matrix Switch

Description

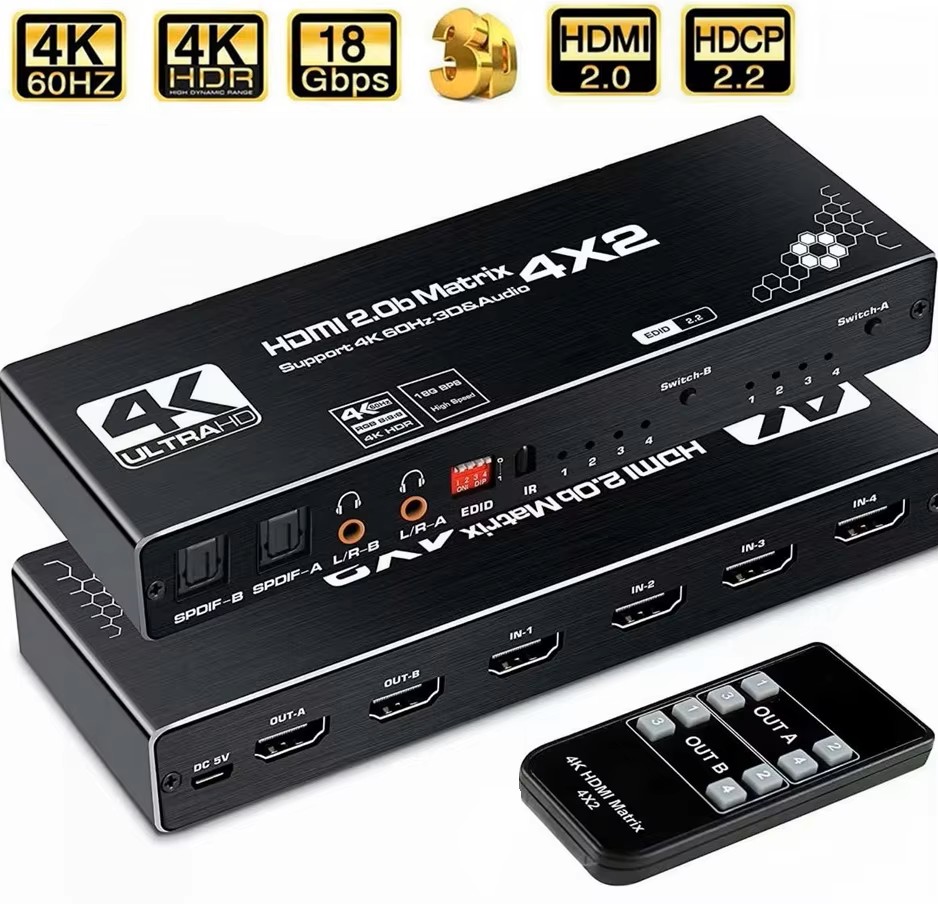

4×2 HDMI Matrix Switch
The 4 in 2 Out HDMI Matrix Switch allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc.

Specifications
– Product Type:HDMI Splitter 1×4.
– Interface Type: 4 HDMI in, 2 HDMI out
– Color: Black
– Power Supply: DC 5V.
– Max working current: 600mA
– Operating Temperature range -15°C to+45°C
– Weight: 0.180kg

Features
– Support HDMI 2.0b HDCP 2.2
– Support 3D video format
– Support highest resolution up to 3840*2160/60Hz
– Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
– Support deep color 8/10/12/24/32/48bit
– Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
– HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
– 4 HDMI inputs switch and split to 2 HDMI displays
– Support LPCM/Dolby/DTS 5 1 audio

Note:
EDID the dial switch to dial downward is 1, dial upward is 0.
1. The Remote Control instruction:
(1) The four buttons on OUT A is the corresponding input source IN1-IN4from OUT AJN1-IN4 can be switched freely.
(2) The four buttons on OUT B is the corresponding input source IN1-IN4 from OUT B, IN1-IN4 can be switched freely.
2. Instruction of Buttons and LED:
(1) Instruction of LED: W1-IN4 indicator is the corresponding input sources out from OUT A or OUT B,
(2) Operation of Buttons: SWITCH A or SWITCH B is used to switch the corresponding inpul source out from OUT A or OUT B.
