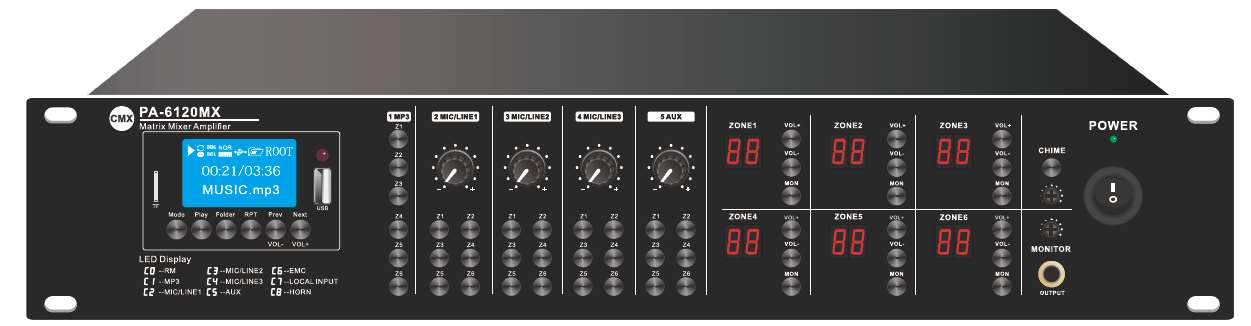

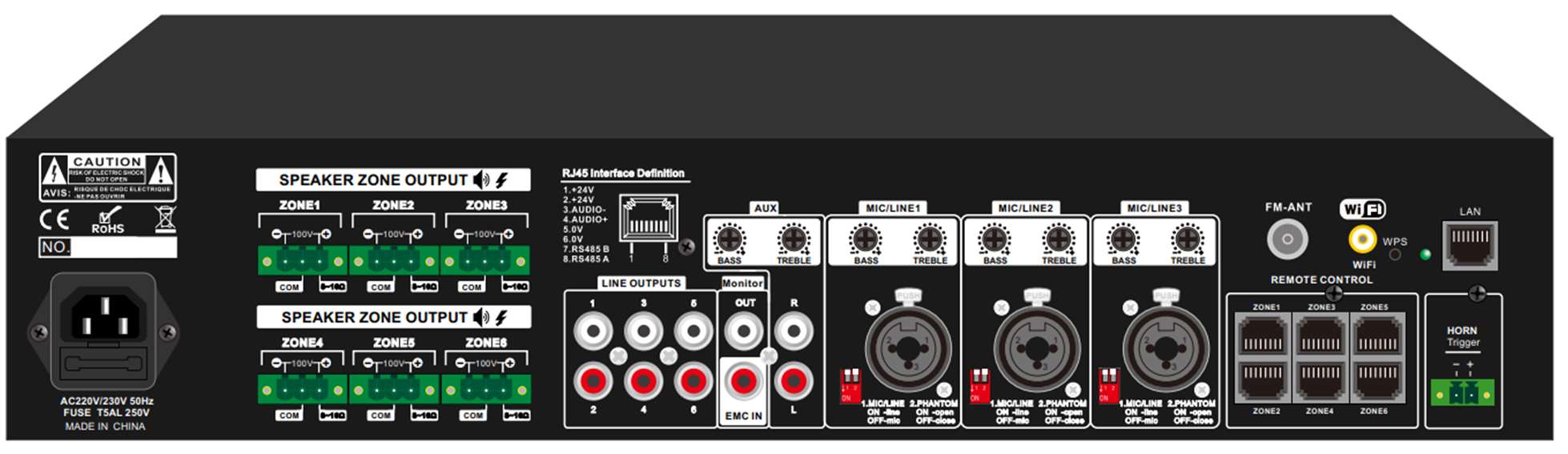

Wi-Fi Internet Streaming 6 Zone Matrix Amplifier with USB/SD/FM/Bluetooth PA-6030MW/PA-6060MW/PA-6120MW

Description

Features:
• Multi-room multiple music systems requiring different audio sources & multiple paging microphones
• 6 zone mixer amplifier built-in USB/SD/FM/Bluetooth audio player
• 6 zone mixer amplifier built-in 6 channel power amplifier & 6 channel audio matrix
• Wi-Fi Internet Streaming 6 zone mixer amplifier with Mp3 player, FM radio & Bluetooth
• Wi-Fi streaming amplifier with wireless smart phone control
• Free Wi-Fi Legacy Player app for Android or iOS
• Support Spotify, DLNA, airplay, internet radio and any online radio stations.
• Support multiple zone or multiple room of different music
• Support multiple mobile to remote control over Wi-Fi
• Support one mobile to remote control multiple Wi-Fi amplifiers
• With LAN port and WPS to reset Wi-Fi address
• Support both 100V or 8-16 Ohms speaker applications
• 6 independent output zones with attenuation
• 3 mic/line inputs, 1 aux input & an integral audio player matrix switched to any of the 6 zones independently
• 3 mic/line switchable input with +48V phantom power balanced COMBO XLR
• Each input with bass/treble includes 3 mic/line & 1 auxiliary input
• Mic1 with VOX highest priority and chime functions
• 24V mute contact to active the built-in pre-recorded Alert/EVAC message
• Monitor headphones output with attenuation
• Up to 6 remote microphones PA-6000RM connection to the amplifier through CAT6 cable
• Up to 6 remote control panels PA-6000SV connection to the amplifier through CAT6 cable
• Remote control panel PA-6000SV select source, adjust volume and input Bluetooth
• With complete protection includes short-circuit, clip, overload and high temp

Specification:
Model PA-6030MW PA-6060MW
Description Wi-Fi Internet Streaming 6 Zone Mixer Amplifier with USB/SD/FM/Bluetooth
Rated Power Output 6×30W 6×60W 6×120W
Speaker Output 100V and 8-16 Ohms
Input Mic/line1-3: 2.5mV, balanced COMBO XLR input with +48V phantom power
Line1-2: 250mV; RCA type
24V Mute: 250mV, phoenix connector
Remote Mic
6 units by CAT6 cable up to 200 meters, direct powered by amplifier
Remote Panel 6 units by CAT6 cable up to 200 meters, direct powered by amplifier
Frequency Response 80-16KHz
THD <0.1% S/N Ratio >70dB
Protection High temp, short circuit, clip & overload
Power Supply 230V AC, 50-60Hz
Power Consumption 200W 400W 900W
Dimension 484×405×88mm
Weight 6.5Kg 6.7kg 6.9kg
