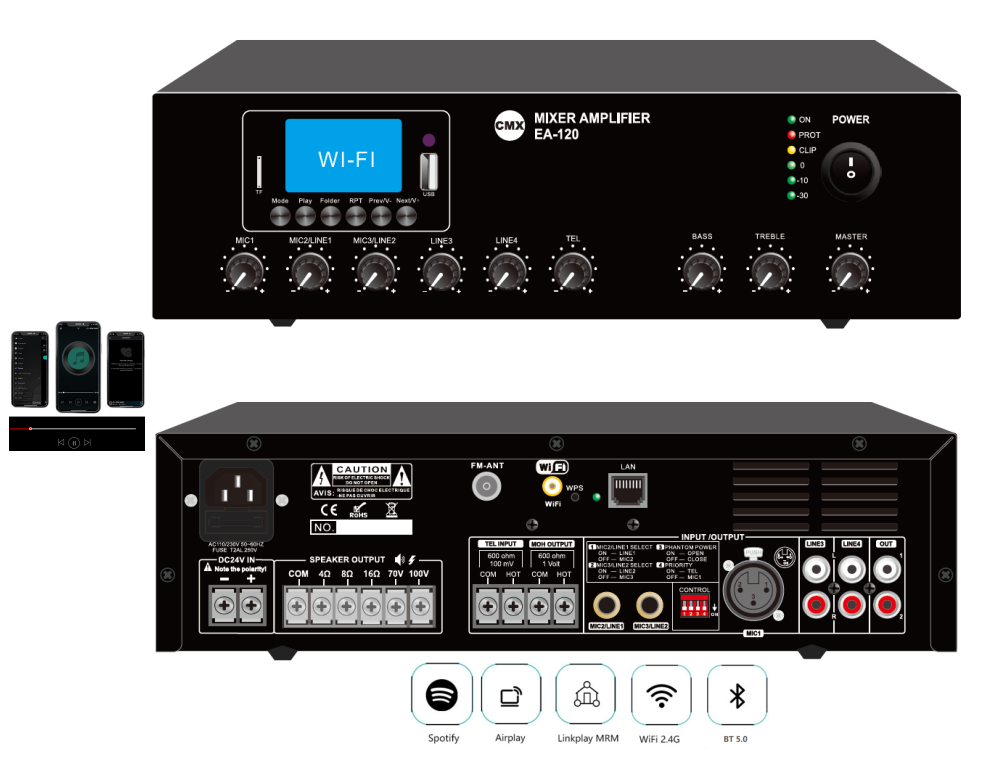

Wi-Fi Internet Streaming Amplifier with USB/SD/FM/Bluetooth EA-30W/EA-60W/EA-120W

Description

Feature:
• Compact mini size Wi-Fi Internet Streaming amplifier
• Tabletop Wi-Fi mixer amplifier with Mp3 player, FM radio & Bluetooth
• Wi-Fi streaming amplifier with smart phone control
• Free Wi-Fi Legacy Player app for Android or iOS
• Support Spotify, DLNA, airplay, internet radio and any online radio stations.
• Support multiple zone or multiple room of different music
• Support multiple mobile to remote control over Wi-Fi
• With LAN port and WPS to reset Wi-Fi address
• Rate power output at 30W, 60W to 120W
• Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
• Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth
• LED indicators for power, clip, protect and signal
• Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOX priority on/off
• Mic/line 2-3 switchable input unbalanced 6.3mm jack
• Line 1-2 input of RCA input and one RCA line output
• Telephone input with secondary priority and MOH (Music on Hold)
• Volume control for Mic1-3, line1-2, TEL, bass/treble and master
• Complete amplifier protection includes short-circuit, clip, overload and high temp
• 230V AC & 24V DC both power supply system

Specification:
Model EA-30W EA-60W EA-120W
Description Wi-Fi Internet Streaming Amplifier with USB/SD/FM/Bluetooth
Rated Power Output 30W 60W 120W
Speaker Outputs 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
Connector Mic1 input by balanced XLR with phantom power & VOX highest priority
Mic/line switchable input 2-3 unbalanced 6.3mm jack
Telephone input with secondary priority and MOH (Music on Hold)
Line1-2 inputs by RCA; Line output by RCA
Input MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
Line Out 0.775(0dBV)
Frequency Response 60Hz-15kHz(±3dB)
S/N Ratio Line ≥ 85dB, Mic≥ 72dB
THD Less than 0.5%
Protection Short-circuit, clip, overload and high temp protection
