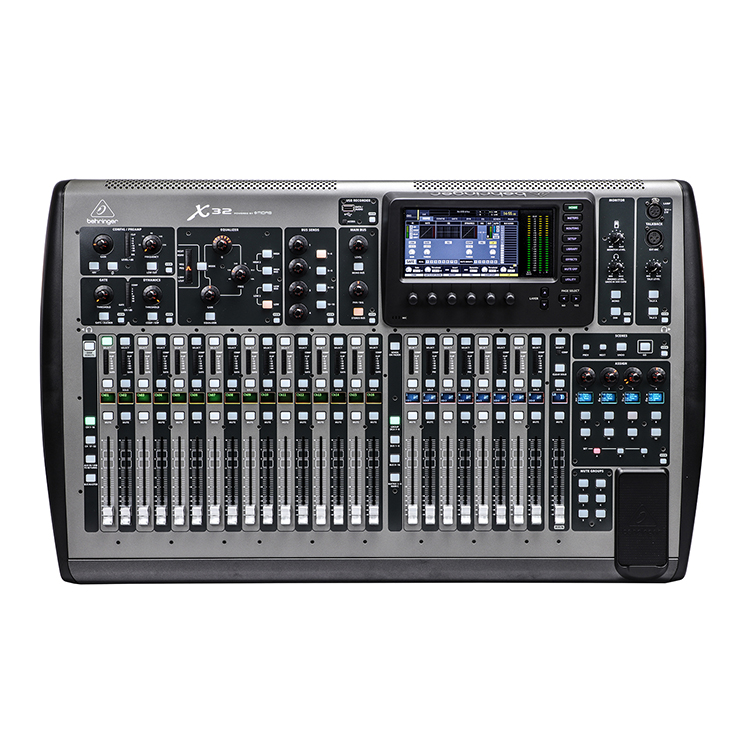

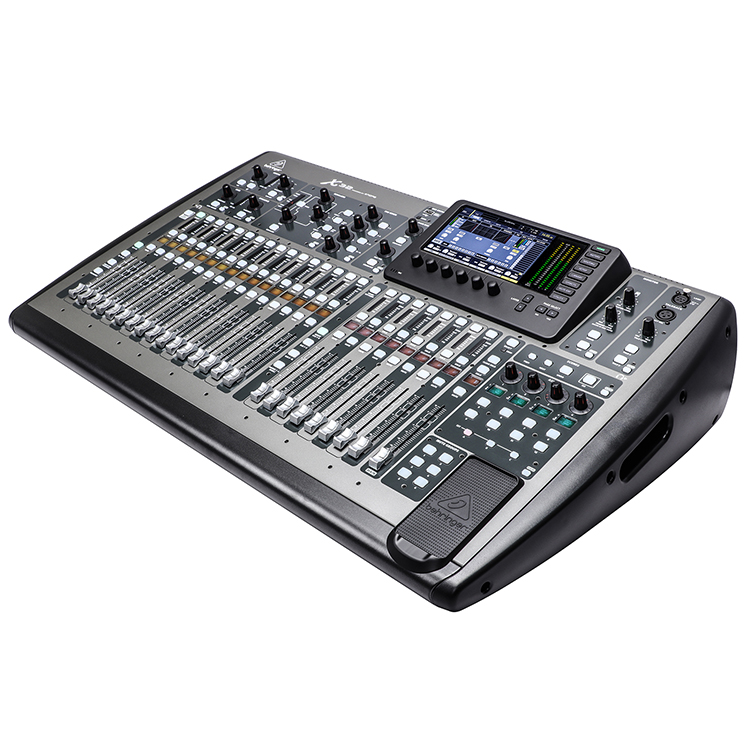

X 32 Digital audio Mixer 32 CH

Description

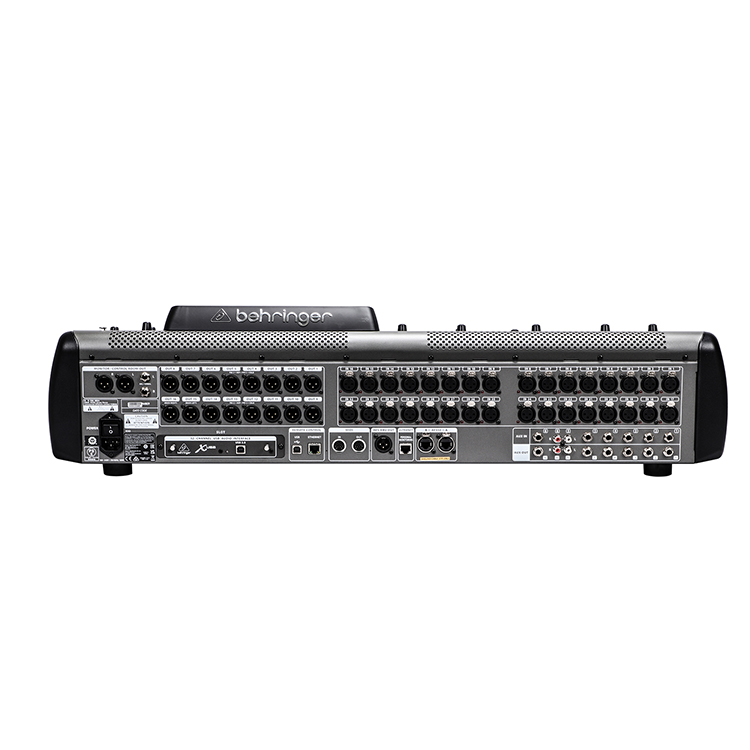

• Mic/Line Inputs: 32 x XLR (programmable, Midas-designed)
• Outputs: 16 x XLR main outputs, 2 x XLR/1/4″ monitor outputs
• Auxiliary I/O: 6 x 1/4″ TRS inputs/outputs, 2 x RCA inputs/outputs
• Digital I/O: 2 x AES50 ports (up to 96 remote inputs via stage boxes), 1 x AES/EBU output, Ultranet port for P-16
• Computer/Expansion: 1 x Expansion slot loaded with a 32×32 USB 2.0 interface card
Processing & Effects
• Channels: 32 input channels + 8 Aux channels + 8 FX returns
• Buses: 16 mix buses (configured as groups or auxes), 6 matrix buses with inserts, and Main LCR (Left-Center-Right)
• Effects Rack: 8 true-stereo or 16 mono FX engines (reverbs, delays, modulations, EQs, dynamics)
• Channel Processing: 4-band fully parametric EQ, compressor, and gate on every channel
• Processing Engine: 40-bit floating-point DSP running at 44.1 or 48 kHz
Control & Interface
• Faders: 25 x 100mm motorized faders organized in 3 banks
• Display Screen: 7″ main color TFT display
• Channel Strips: 32 LCD scribble strips (individually customizable RGB-backlit displays per channel)
• Remote Control: Compatible with X32-Edit (Mac/PC/Linux), X32-Mix (iPad), and X32-Q (Android/iOS) via Ethernet or USB
Physical Specifications
• Dimensions: 35.4″ W × 20.8″ D × 7.9″ H (900mm × 528mm × 200mm)
• Weight: 45.4 lbs (20.6 kg)
• Power Supply: 100–240V, 50/60 Hz universal auto-ranging
