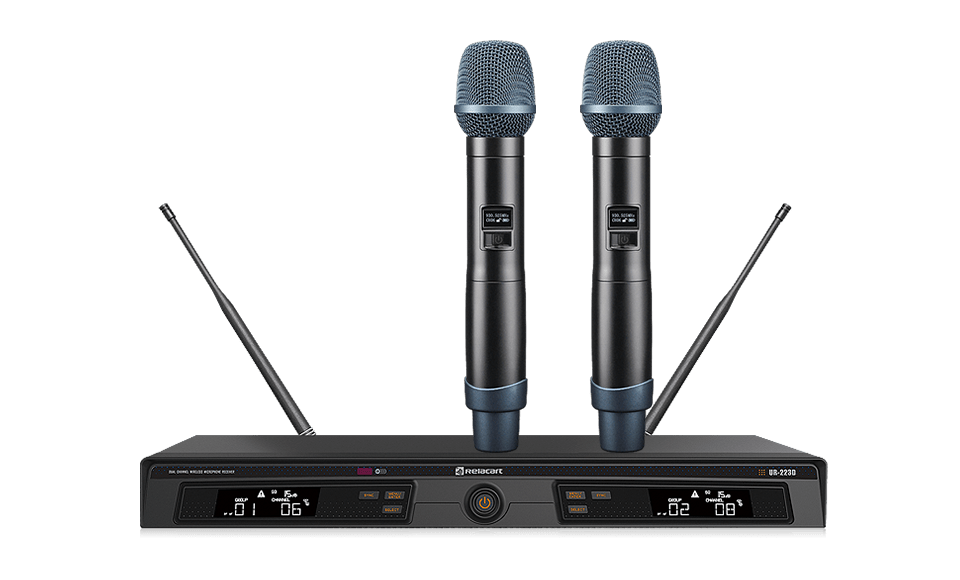

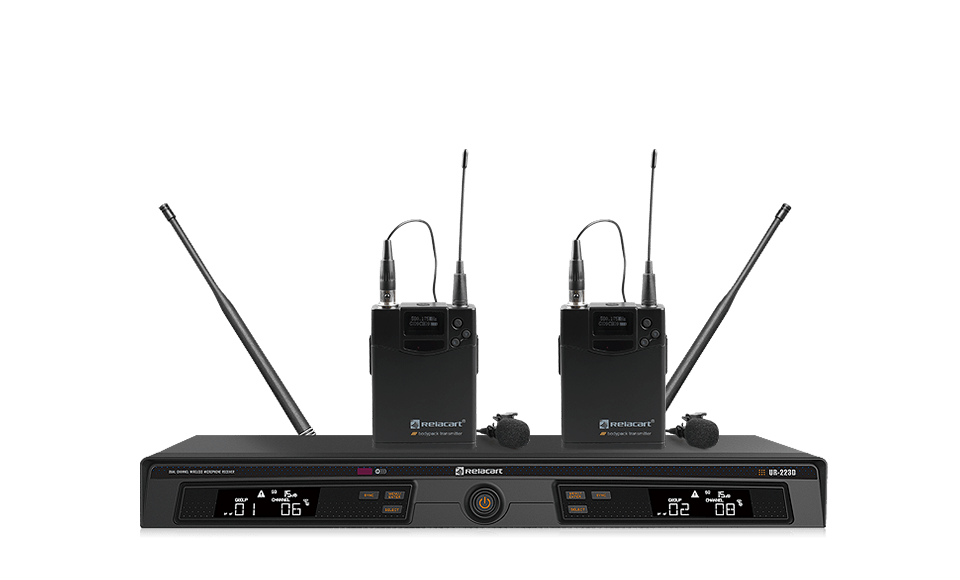

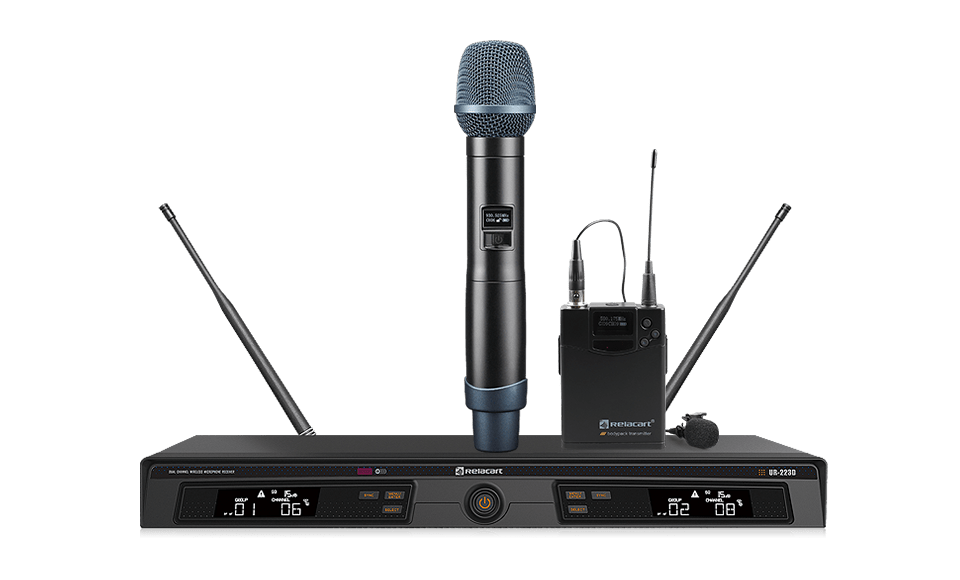

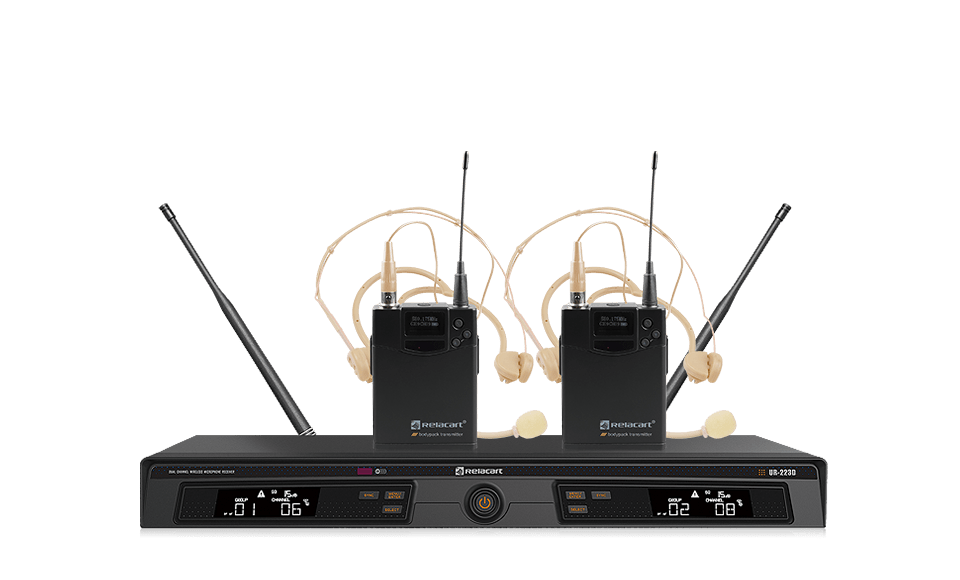

UR-223D Wireless microphone

Description

Main Frame Size: EIA Standard Rack 1U

Channels: Dual Channel

Carrier Frequency Range: 521.25MHz~936.85MHz

Frequency Stability: ±0.005% (-10°C~50°C)

Modulation Mode: FM

Oscillation: PLL synthesized

Max. Deviation Range: ±45KHz

Receiving Sensitivity: S/N>60dB at 25 deviation

Bandwidth: 64MHz

S/N: >105dB

T.H.D.: <0.7%@1KHz Frequency Response: 80Hz-18KHz ±3dB Companding: Relacart classical audio processing technology Operating Range: 80M typical ( in open space) Output Connector: XLR balanced & 6.3φ phone jack unbalanced Antenna Connector: BTC Power Supply: DC 12V / 12W Dimension (mm): 410(W)×206(D)×43(H) Weight: Approximately1.9kg
