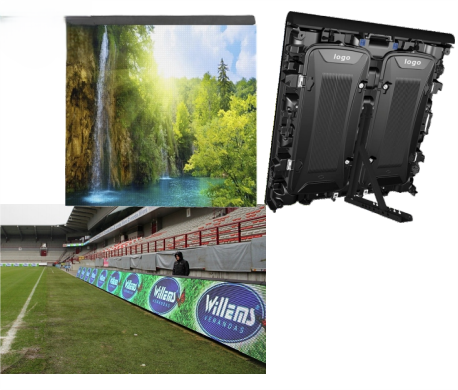

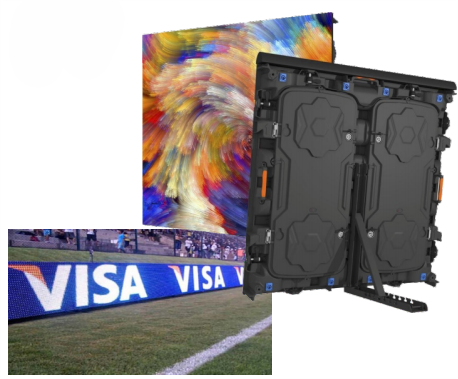

P5 P8 P10 OUTDOOR FOOTBALL LED DISPLAY 960*960MM

Description

Outdoor P5 P8 P10 SMD Main specification

Outdoor P5 P8 P10 Item Parameter
Model Number P5-8S
P8-4S/5S
P10-4S
Module size 320mm(H)*160mm(V)
Pixel pitch 5mm
8mm
10mm
Pixels Density 40000dots/m²
15625dots/m²
10000dots/m²
Pixel configuration 1R1G1B
Package mode SMD1921
SMD3535
SMD3535
Drive type Constant drive (IC:2037/2153)
Scan mode 1/8scan
1/4 1/5scan
1/4scan
Port type HUB75
Brightness of white balance ≥65000cd/m²
Best viewing distance 4M-30M
6M-30M
8M-30M
Best viewing distance 160°(W) 120°(H)
Temperature storage:-35℃～+85℃

working:-20℃～+50℃
Refresh >1920-3840HZ
Gray Grade 14 bits
Thickness 85mm
Working voltage AC220V±10%
Average Power consumption 450W/S
Cabinet size 960*960mm
Material Die cast aluminum
Average Power consumption 400W/S
If >6000 cd/㎡; 800W/S
System support Linsn / Nova star
