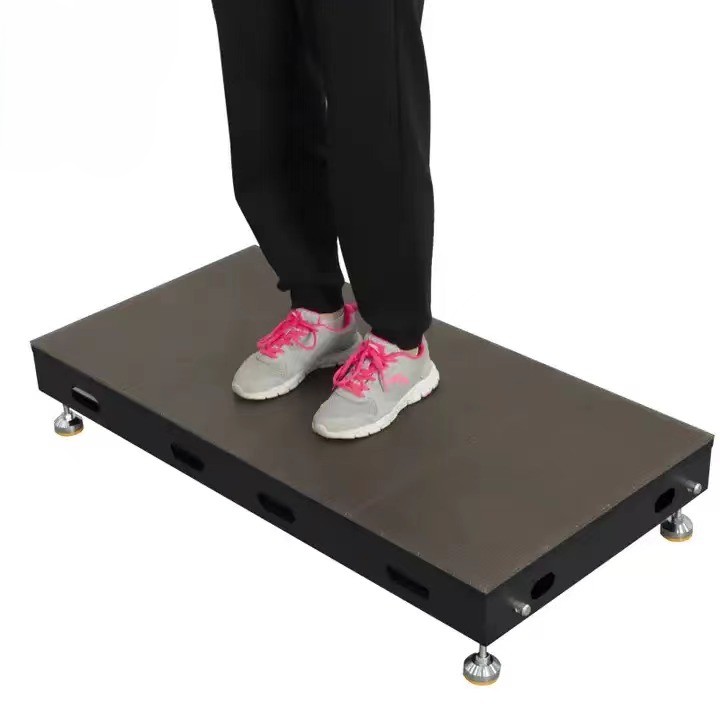

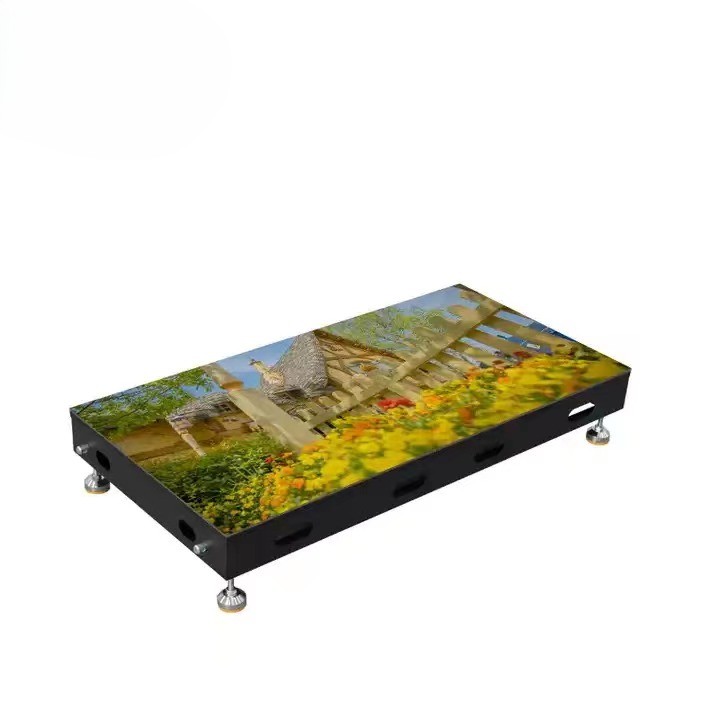

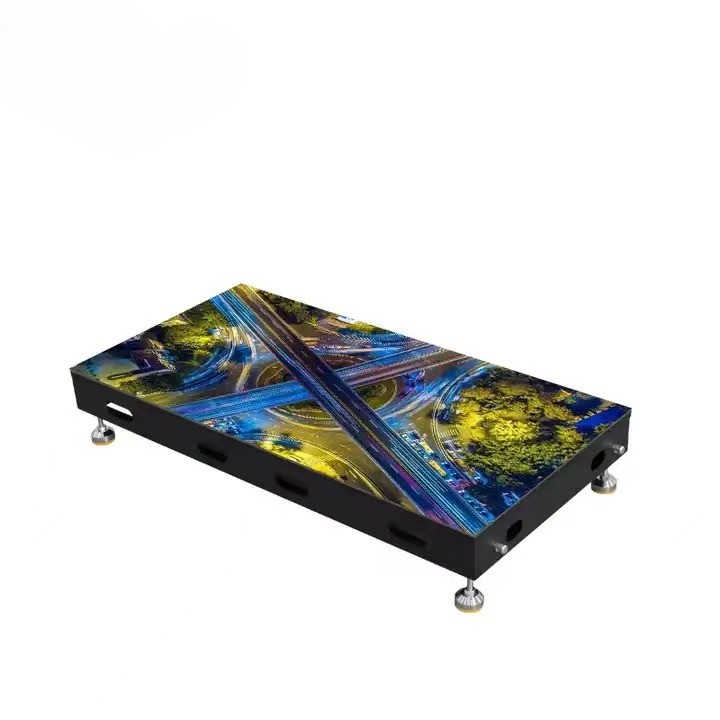

OUTDOOR P2.976 P3.91 P4.81 500*1000MM LED DANCE FLOOR SCREEN

Description

Outdoor P2.976 P3.91 P4.81 SMD Main Parameter

Unit Module Item Parameter
Model Number P2.976-21S
P3.91-16S
P4.81-13S
Module size 250mm*250mm
Pixel pitch 2.976mm
3.91mm
4.81mm
Pixels Density 112896 dots/m²
65536 dots/m²
43264 dots/m²
Pixel configuration 1R1G1B
Package mode SMD1415
SMD1921
SMD1921
Pixel resolution 84dots(W)*84 dots(H)
64dots(W)*64 dots(H)
52dots(W)*52 dots(H)
Drive type Constant drive
Scan mode 1/21scan
1/16scan
1/13scan
Port type HUB75
Brightness of white balance ≥6500cd/m²
Best viewing distance 4M～30M
Best viewing distance 160°(W) 120°(H)
Temperature storage:-35℃～+85℃
working:-20℃～+50℃
Operation humidity 10%-95%
Thickness 85mm

Power Working voltage AC220V±10%
Average Power consumption 600W/S
