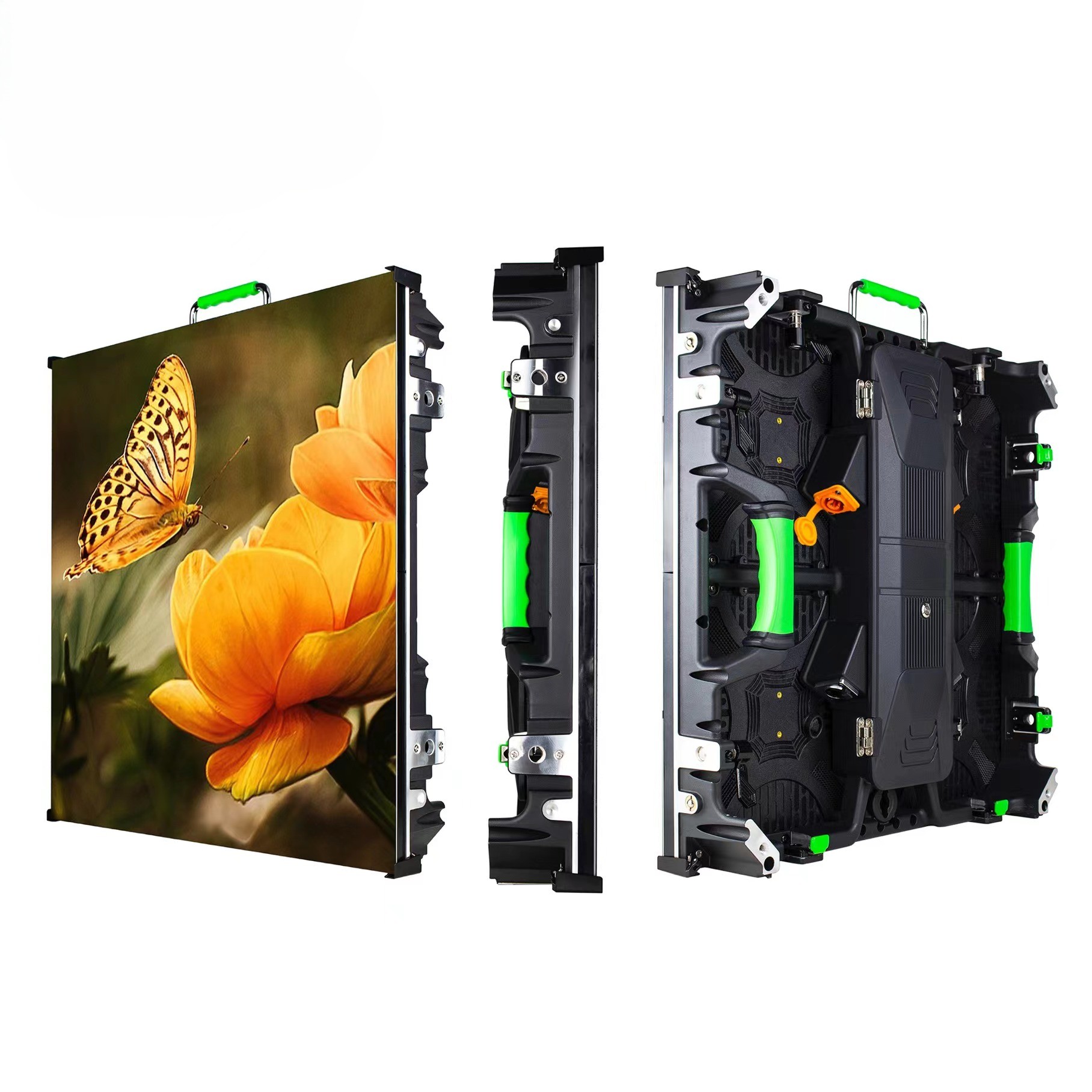

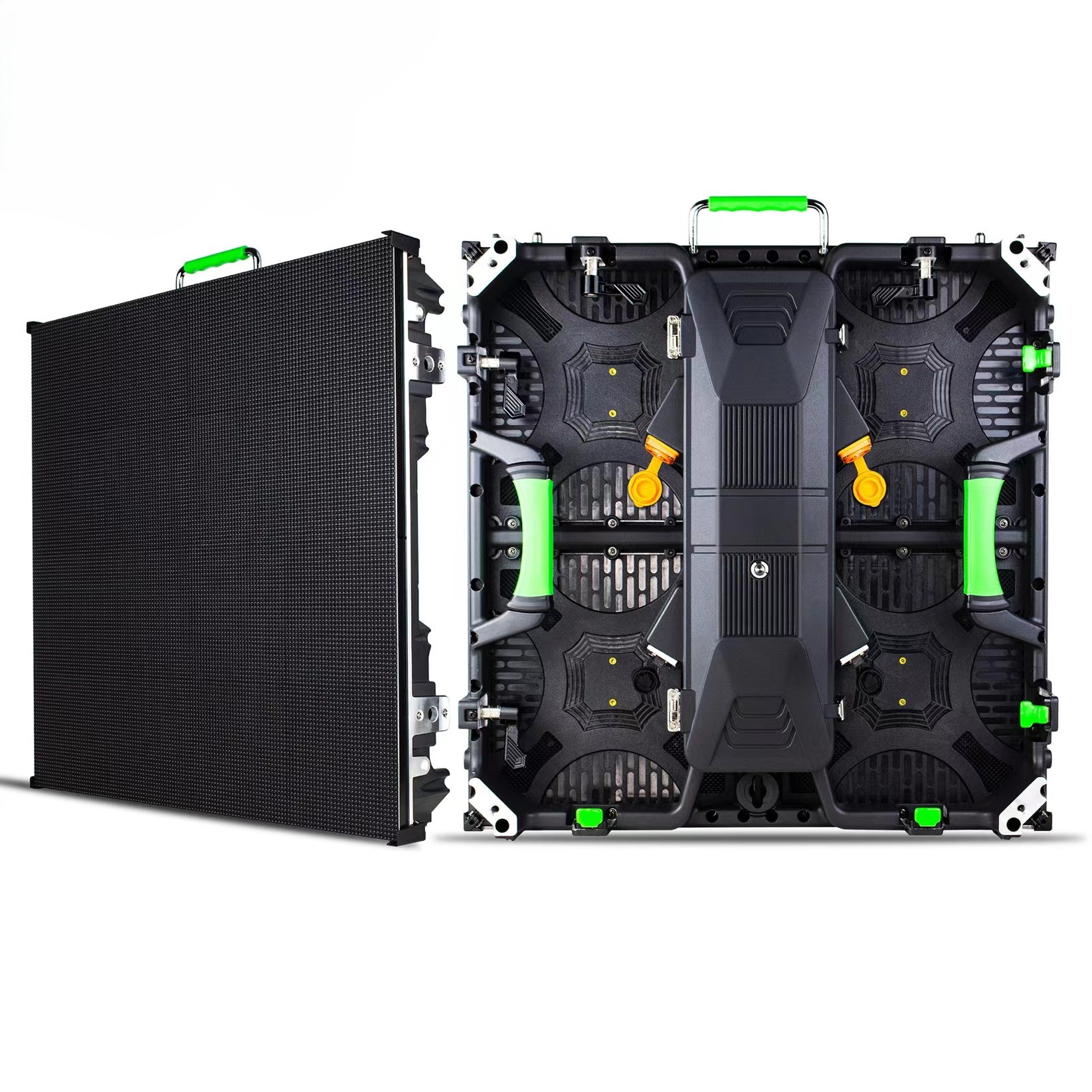

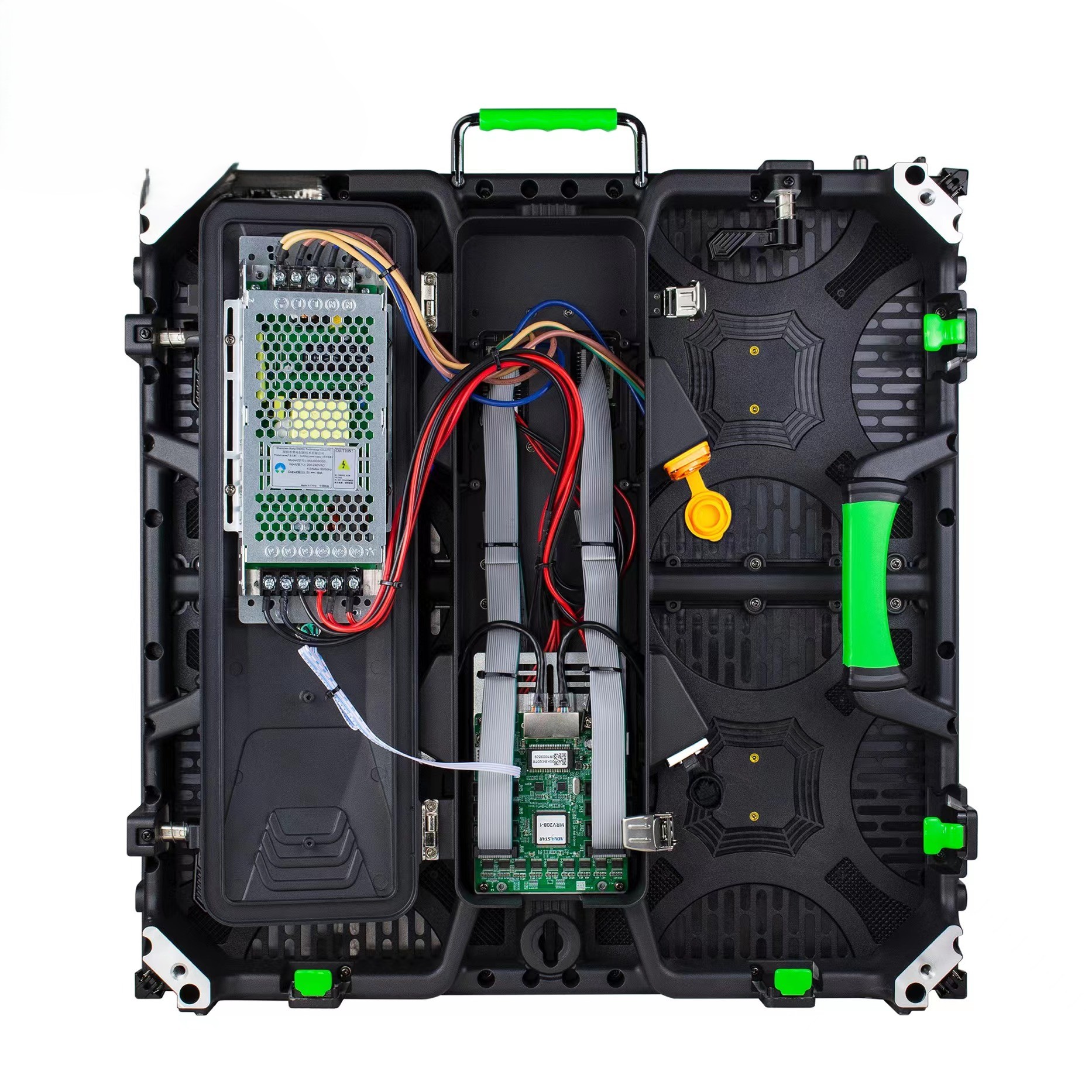

OUTDOOR P2.6 P2.976 P3.91 P4.81 500*1000MM LED SCREEN DISPLAY WITH RENTAL PANELS

Description

Outdoor P2.6 P2.976 P3.91 P4.81 SMD Main specification

Outdoor P2.6 P2.976 P3.91 P4.81 Item Parameter
Model Number P2.6-24S
P2.976-32S
P3.91-16S
P4.81-13S
Module size 250mm(H)*250mm(V)
Pixel pitch 2.6mm
2.976mm
3.91mm
4.81mm
Pixels Density 147456 dots/m²
112896 dots/m²
65536 dots/m²
43264 dots/m²
Pixel configuration 1R1G1B
Package mode SMD1415
SMD1516
SMD1921
SMD1921
Drive type Constant drive (MBI5124/2038s)
Scan mode 1/24scan
1/16scan
1/16scan
1/13scan
Port type HUB75
Brightness of white balance ≥65000cd/m²
Best viewing distance 2M ~30M
3M～50M

4M～50M
5M ~50M
Best viewing distance 160°(W) 120°(H)
Temperature storage:-35℃～+85℃

working:-20℃～+50℃
Refresh >1920-3840HZ
Gray Grade 14 bits
Thickness 85mm
Working voltage AC220V±10%
Average Power consumption 450W/S
Cabinet size 500*1000mm
Cabinet Pixel resolution 168dots(W)*336dots(H)
Material Die cast aluminum
Average Power consumption 400W/S
If >6000 cd/㎡; 800W/S
System support Linsn / Nova star
