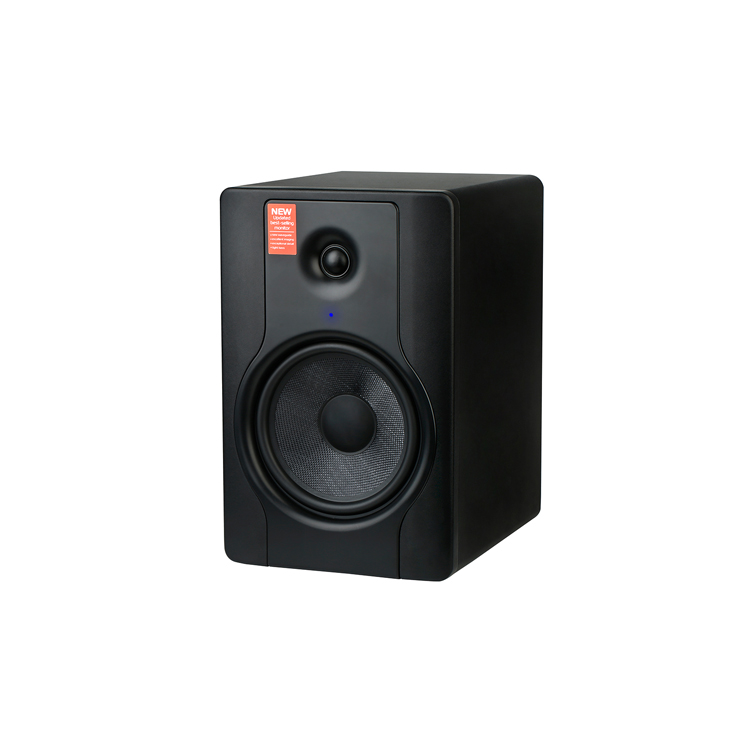

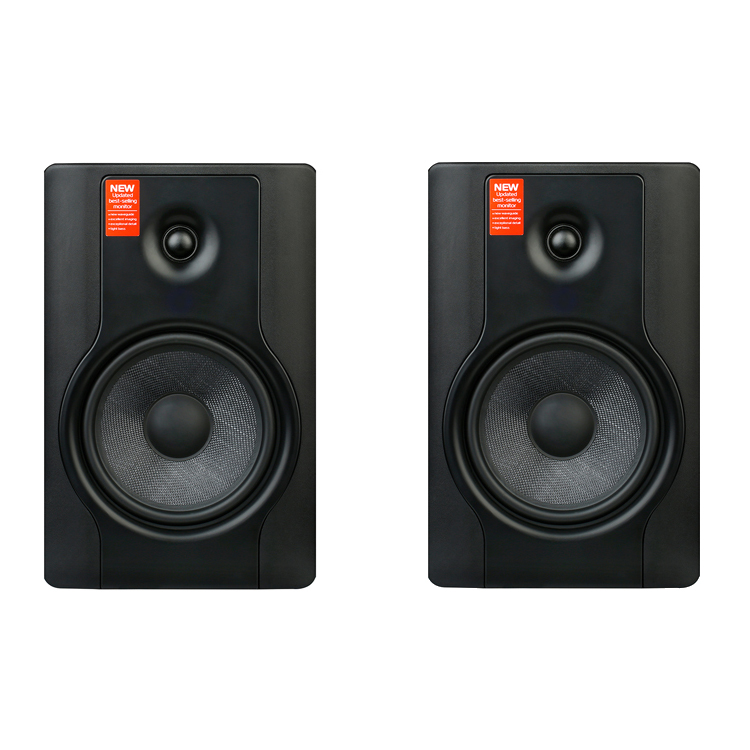

BX8D2 Audio Monitor

Description

BX8D2 Studio monitor
Acoustic & Power Specs
• Type: 2-way near-field active studio reference monitor
• Frequency Response: 38 Hz- 22Khz
• Total Power: 130W total distributed power (Class A/B)
• Low-Frequency Power70 W
• High-Frequency Power: 60 W
• Crossover Frequency: 2.2 kHz
Drivers
• LF Driver: 8-inch (203 mm) curved Kevlar cone with high-temperature voice coil and damped rubber surround
• HF Driver: 1-inch (25 mm) natural silk dome tweeter
• Shielding: Magnetically shielded to prevent interference with other electronic gear

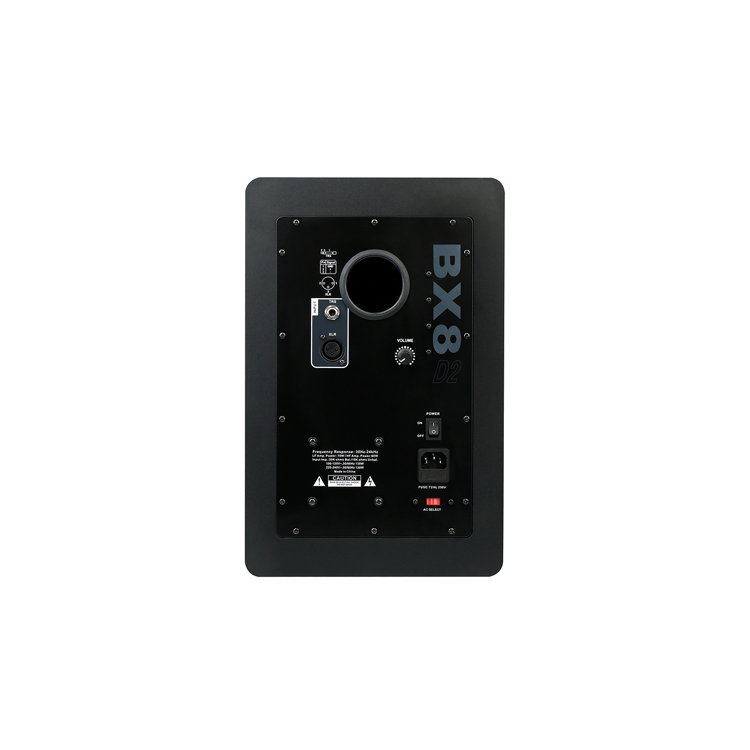

Connections & Controls
• Inputs: 1 x XLR balanced, 1 x TRS balanced/unbalanced
• Input Impedance: \(20\text{ k}\Omega\) balanced, \(10\text{ k}\Omega\) unbalanced
• Input Sensitivity: \(85\text{ mV}\) pink noise input produces \(90\text{ dBA}\) output SPL at \(1\text{ meter}\) (volume at max)
• Controls: Volume adjustment, Rear-panel power, and Acoustic Space controls
Physical Properties
• Cabinet: Vinyl-laminated MDF
• Dimensions: 12″ x 10″ x 15″ (30.48 cm x 25.4 cm x 38.1 cm)
• Weight: 26.4 lbs. (11.97 kg) per unit
