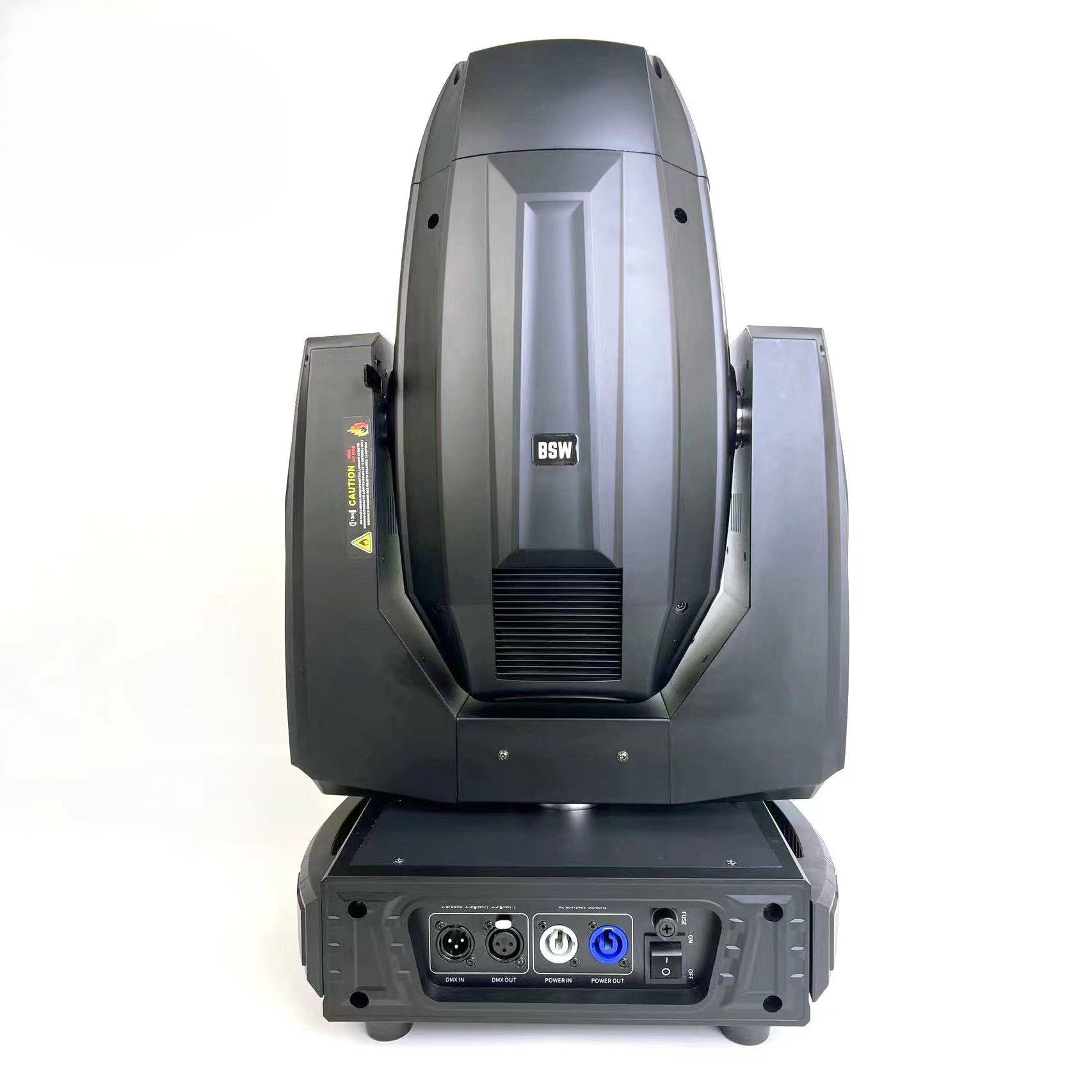

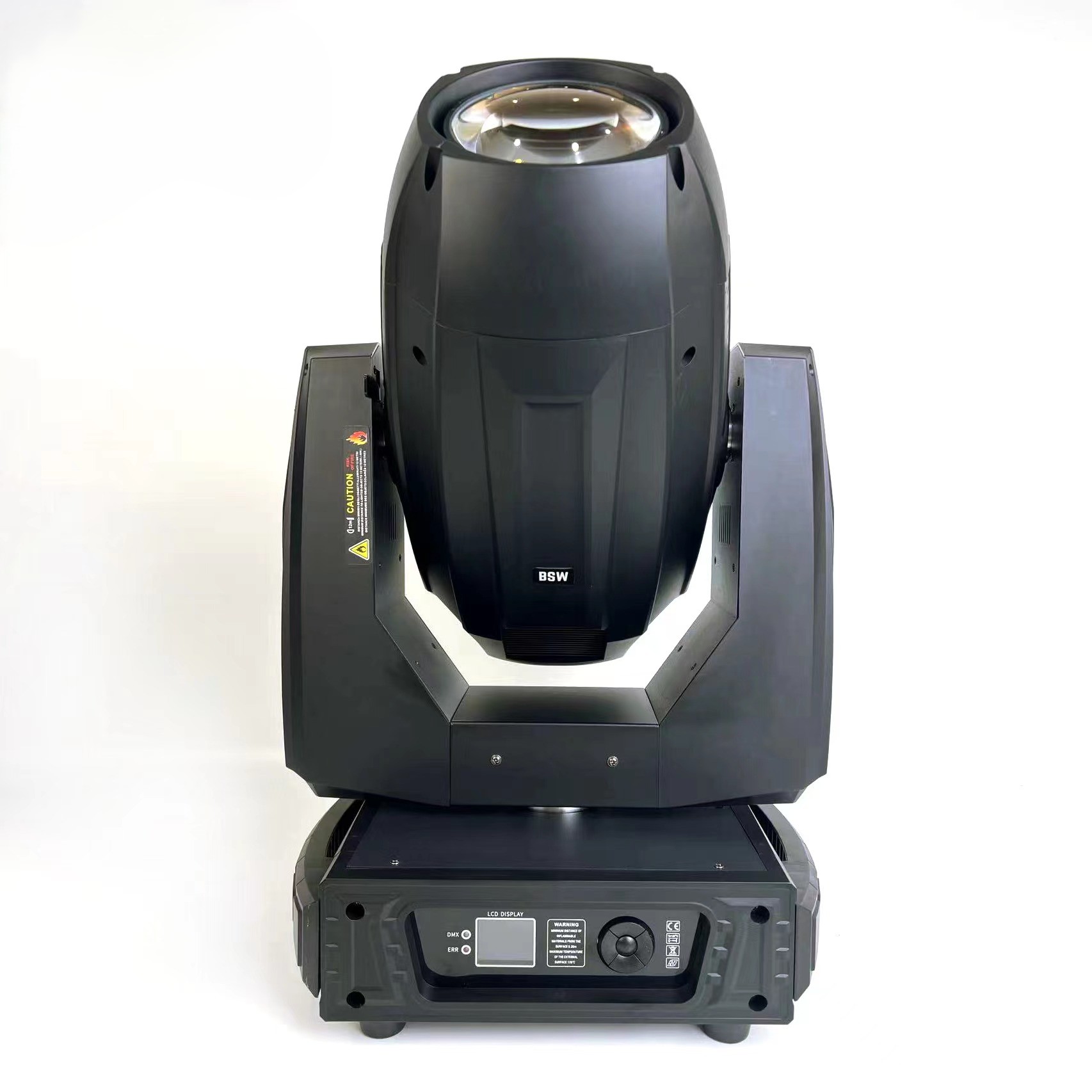

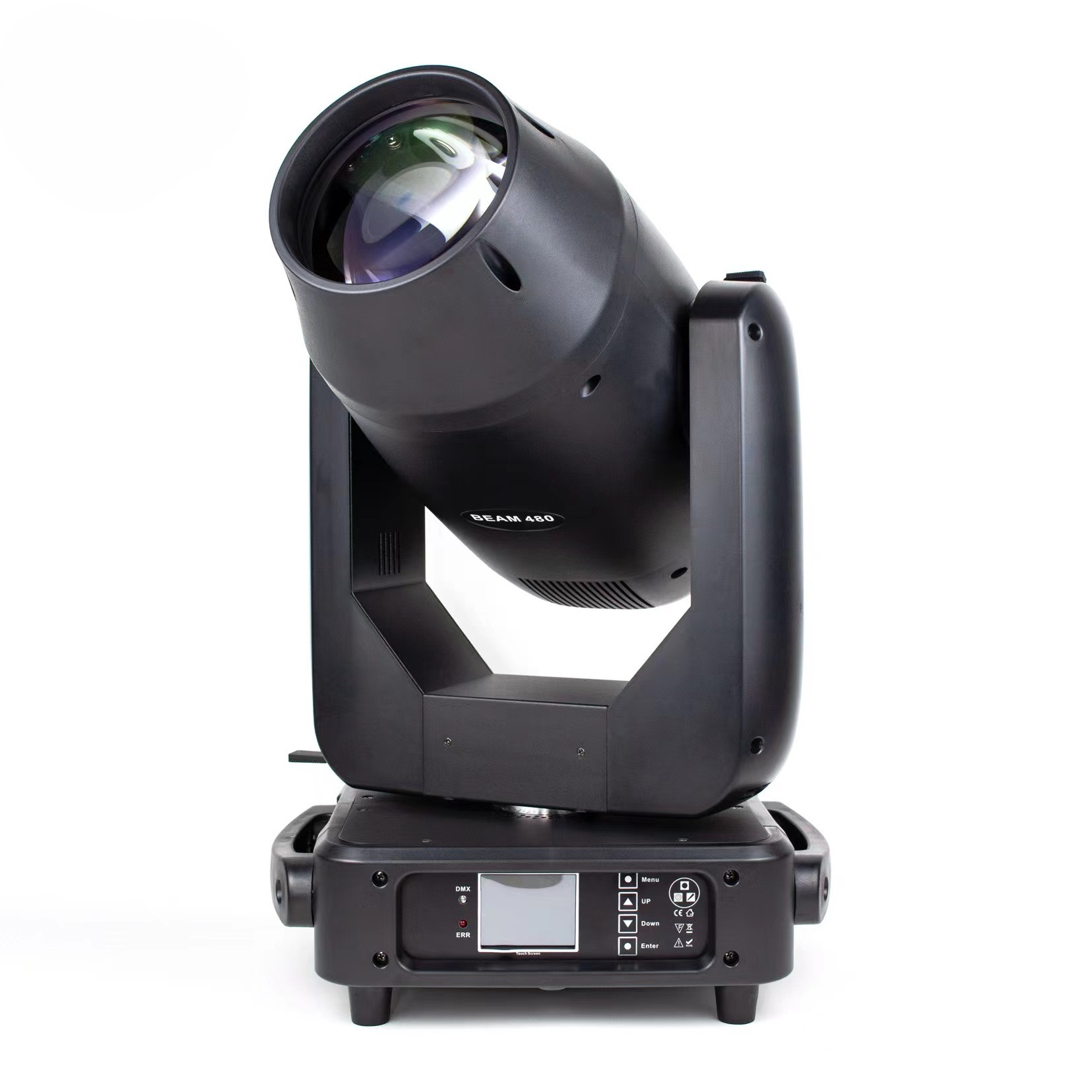

400W / 480W CMY+CTO Beam Moving Head Light

Description

Color temperature 8000K Color
rendering index 75
Input voltage AC110V-240V/50-60HZ
Light source specification 400wLED or 480WLED
Light source life 50000 hours
Lumen illuminance 4 meters 80000 lm
Rated power 430W
Channel mode 22 channels
Pan scanning 540°(16-bit) electronic error correction
Tilt scanning 270°(16-bit) electronic error correction
Dimming system 0-100% linear adjustment
Focus system linear adjustment from 4 meters to 50 meters
Atomization system 1 independent atomization effect, soft and natural spot
Magnification angle 4-35 degrees
High-speed strobe 0-30 times/sec. Adjustable speed strobe effect. Strobe macro function
Color 12 colors + white light. Color half-color function
Color system independent CMY+CTO color mixing system.
Fixed pattern 12 fixed patterns + white light
Rotation pattern 7 glass patterns, each glass pattern can be independently forward, reversed
Prism system Single 6-row prism and 8+8 prism are standard, each prism can be independently forward-reversed
Macro function console reset function, Auto master-slave mode
Display mode LCD display, button + touch dual operation mode
Control signal international standard DMX512. With RDM function, online software upgrade, dial address code
Cooling mode Axial fan is used to strengthen cooling
Safety device with electronic temperature control overheating protection, electronic temperature control automatic power-off protection when overheating system failure
Appearance material high temperature resistant plastic
Working environment -20 degrees, 40 degrees
Protection class IP20
Product net weight 22.5KG
Product size 38*27*65CM (L*W*H)
