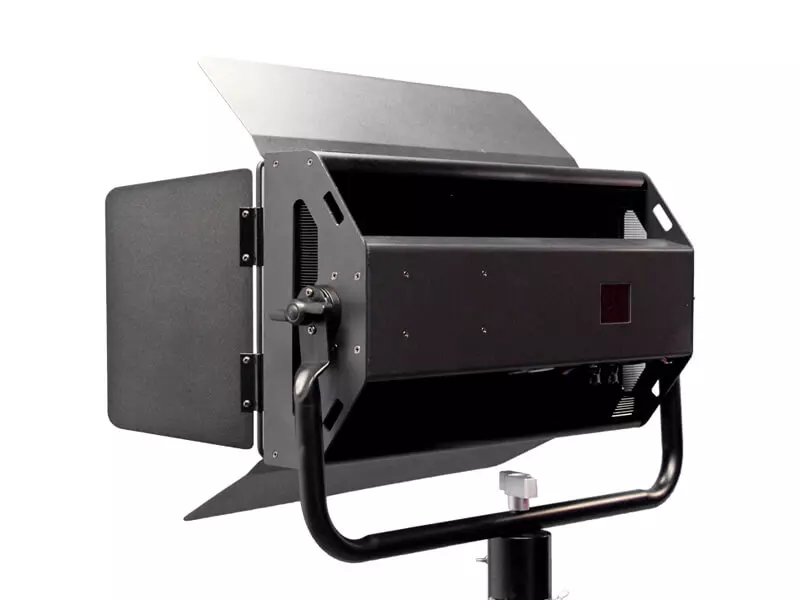

200W Bi color Fan less LED TV Studio Fresnel

Description

Features
·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;
·Small size and very compact structure, high power and brightness;
·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;
·Use the LED video projector scheme, the light energy saving 80%;
·Because of almost no infrared radiation, it has greatly improve work environment.
Technical Specifications
Light Sources
·LED: 1pc 100W bicolor LED Lamps
·Lifespan: 50,000h
·Color: from warm white to cold white
Optics
·Beam angle: 15-35degree
·Dimmer: 0-100% linear dimmer
·Frequency of dimmer: 24K flick free light source dimmer system
·CRI: Ra≥95
·Special CRI: R9≥90, R15≥90
·Color temperature: 3200K to 5600K
·Size of lens: 150mm(diameter) Fresnel glass
Light Output
·Optimal projection distance: 3-5m
Control
·Control mode: DMX-512; Auto run
·DMX channel: 4CH, 5CH
·Display of control panel: LCD display + 4 buttons
Power Supply
·Related voltage: AC100V-240V, 50/60Hz
·Related power: 120W
·Light output power: keep 100W
Construction
·Body dimension: D456*W236*H166mm
·Net weight: 4kg
·Shell color: black
·Shell material: aluminum die casting and steel
Working Environment
·Working temperature: -25-40℃
·Cooling: Radiator, without fan
·Temperature monitoring: built-in temperature protection sensor, by automatically adjusting the lamp power to carry out over temperature protection, display panel real-time check lamp operating temperature
·Protection rating: IP20
Standard Configuration Spare Part List
·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
·User manual: English version user manual
Optional Configuration Spare Parts List
·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
Package Information
·Carton board box package size: 490*320*300mm(1pc/carton) [c:23-10-31]
·N. W/G. W: 4kg/6kg/9.5kg
